Product Description

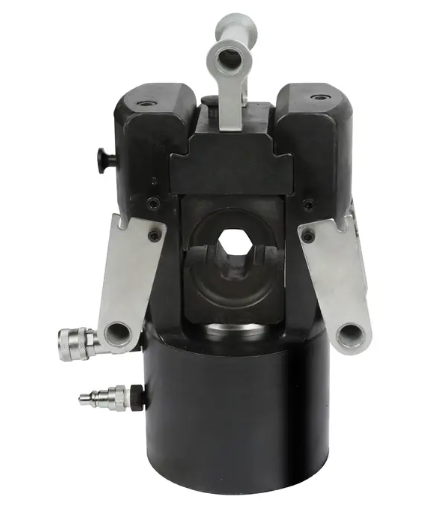

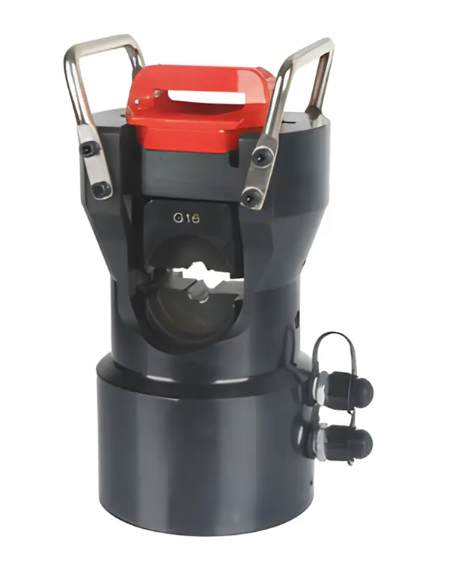

Model QY hydraulic compressor
| 产品编号 | 16103 | 16103A | 16104 | 16105 | 16106 |
| Item number | |||||
| 产品型号 | QY-600 | QY-1000 | QY-1250 | QY-2000 | QY-3000 |
| Model | |||||
| 出 力 | 60T | 100T | 125T | 200T | 300T |
| Crimping | |||||
| force | |||||
| 压 接 范 围 | 14-55mm | 14-76mm | 14-76mm | 14-90mm | 14-100mm |
| Crimping | |||||
| range | |||||
| 压 接 类型 | 六角围压 | 六角围压 | |||
| Crimping | hexagon crimping | hexagon crimping | |||
| type | |||||
| 行 程 | 24mm | 24mm | 35mm | 35mm | |
| Stroke | |||||
| 高 度 | approx.370mm | approx.480mm | |||
| Heigth | |||||
| 重量（KG） | approx.N.W20KG | approx.N.W30KG | approx.N.W50KG | approx.N.W85KG | approx.N.W120KG |
| Weight | G.W30KG | G.W40KG | G.W60KG | G.W95KG | G.W130KG |
| 包 装 | 木箱wooden case | 木箱wooden case | |||
| Package | |||||
