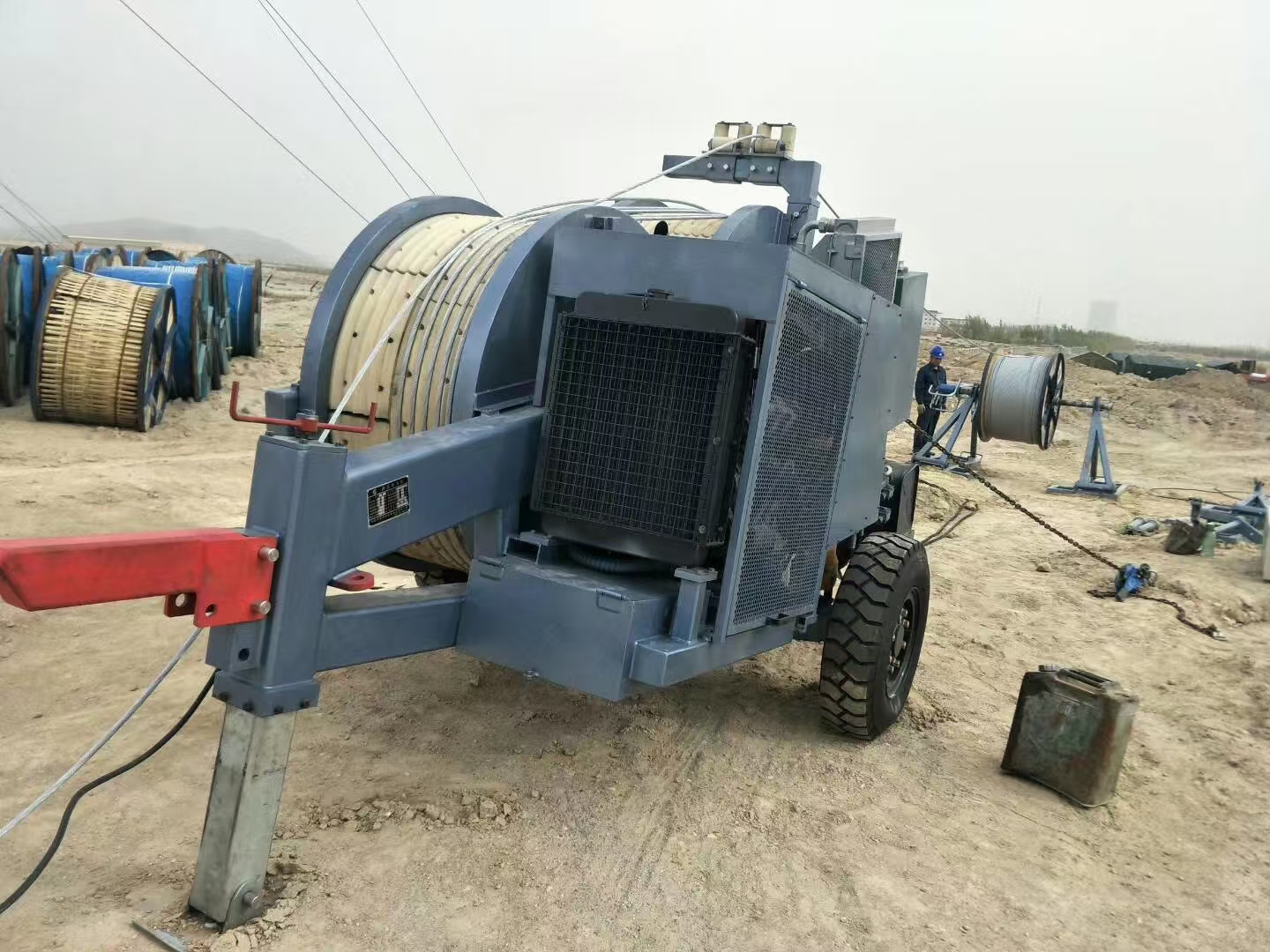

10Ton Stringing Tensioner Machine
This 2×50 kN (1×100kN) hydraulic stringing tensioner machine is designed for overhead high-voltage power transmission line stringing. Max continuous tension 2×40kN, max payout speed 5km/h, fitted with Deutz / Cummins engine, Rexroth hydraulic system, widely used for ACSR, OPGW conductor laying in power grid construction. Heavy-duty trailer type, stable tension control for power line erection project.
Product Description
Technical Parameters
- Max Tension: 2×50 kN or 1×100 kN
- Max Continuous Tension: 2×40 kN or 1×80 kN
- Max Paying-out Speed: 5 km/h; Corresponding Tension: 2×20 kN or 1×100 kN
- Max Reverse Traction Force: 2×40 kN or 1×80 kN
- Corresponding Speed: 2×1.35 km/h or 1×2.7 km/h
- Max Traction Speed: 2×2.15 km/h or 1×4.3 km/h
- Corresponding Traction Force: 2×25 kN or 1×50 kN
- Diameter / Groove Quantity of Tension Wheel: 1500 mm / 2×5
- Max Applicable Conductor Diameter: φ40 mm
- Engine Power: 51kW /2500 r/min or Cummins
- Electrical System: 24V
- Overall Dimension (L×W×H): 4350mm×2200mm×2300mm
- Total Weight: 5400kg; Cummins Version Weight: 5900kg
Configuration, Structure & Performance
- Engine: Manufactured by Beinei Deutz Engine Co., Ltd. (Deutz Technology) or Dongfeng Cummins
- Variable Pump: Sauer-Danfoss or Rexroth (Germany)
- Reducer: KPM (Germany) or Double R (Italy)
- Main Motor: Rexroth (Germany)
- Radiator: AKG (Germany) or Shanghai Lengfan (with AKG Technology)
- Hydraulic Gauge: Dongfang Instrument Co., Ltd. or WIKA
- Hydraulic Valve: Manufactured by Beijing Huade Hydraulic Industrial Group (Rexroth Technology) or Original Rexroth
- Hydraulic Auxiliary Components: Manufactured by Wenzhou Liming Hydraulic Electromechanical Co., Ltd.
- Hydraulic Hose: Manufactured by Ningbo Longsheng Group, O-ring Fittings (DIN Standard, Germany)
- Tire: Heavy-duty Tire
