Aluminum Wheel Stringing Blocks
stringing block for power line transmission stringing construction
Product Description

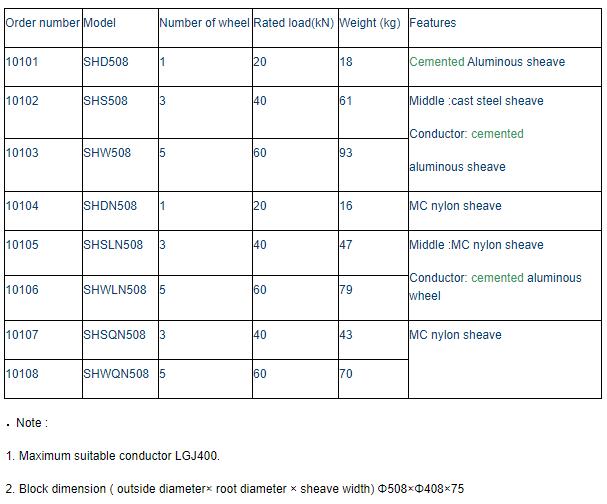

508/660/822 Stringing Block with Aluminum Wheel
|
Order number |
Model |
Number of wheel |
Rated load(kN) |
Weight (kg) |
Features |
|
10101 |
SHD508 |
1 |
20 |
18 |
Cemented Aluminous sheave |
|
10102 |
SHS508 |
3 |
40 |
61 |
Middle :cast steel sheave Conductor: cemented aluminous sheave |
|
10103 |
SHW508 |
5 |
60 |
93 |
|
|
10104 |
SHDN508 |
1 |
20 |
16 |
MC nylon sheave |
|
10105 |
SHSLN508 |
3 |
40 |
47 |
Middle :MC nylon sheave Conductor: cemented aluminous wheel |
|
10106 |
SHWLN508 |
5 |
60 |
79 |
|
|
10107 |
SHSQN508 |
3 |
40 |
43 |
MC nylon sheave |
|
10108 |
SHWQN508 |
5 |
60 |
70 |
﹒Note :
1. Maximum suitable conductor LGJ400.
2. Block dimension ( outside diameter× root diameter × sheave width) Φ508×Φ408×75
